Agentic Flow How-To Guide

Yauheni Kurbayeu

Table of Contents

expand_more

Agentic Flow How-To Guide

Agentic Flow How-To Guide

Author: Yauheni Kurbayeu
Published: Mar 22, 2026

TL;DR

In the previous article, Building an Automated Translation Pipeline for a Markdown Blog with GitHub Copilot Agents, we designed a GitHub Copilot-based translation pipeline built around an orchestrator, language-specific subagents, reusable skills, and hooks.

That design was then evaluated against the real repository implementation in the assessment report, How the Current GitHub Copilot Article Translation Flow Works in This Repository, which shows what the current setup actually does today and where the responsibilities are really split across repository instructions, agents, skills, and hooks.

In this article, we go one step further and turn those ideas into a practical how-to. We walk through how this workspace models agentic inheritance, how instruction layering replaces native inheritance, and how the three execution approaches work:

  • sequential
  • parallel
  • hierarchical

The goal is to give you a reusable design pattern for GitHub Copilot agent flows with shared instructions, specialized workers, and clear coordination rules.

Hooks are intentionally out of scope here. They can be added later to improve validation, observability, and safety around the flow.

What This Workspace Already Demonstrates

The current workspace uses an inheritance-like structure built from layered instructions rather than true class inheritance.

Main building blocks

Current review summary

  • The inheritance model is clear and reusable.
  • Sequential mode is modeled as orchestrator-managed chaining.
  • Parallel mode is modeled as orchestrator-managed fan-out and fan-in.
  • Hierarchical mode is modeled as worker-to-worker delegation.
  • Hierarchical mode changes the role of worker1 and worker2: in that mode they are no longer pure leaf workers, even though the shared worker skill describes workers as leaf nodes by default.

That last point is not necessarily wrong, but it is an important design choice. If you use hierarchical execution, some workers become intermediate coordinators.

Agentic Inheritance

The core idea

GitHub Copilot agents do not have native inheritance. The practical replacement is instruction composition:

  1. Global instructions act as the base class.
  2. Shared skills act as reusable role layers.
  3. Agent files act as thin specializations.
  4. Runtime task data completes the behavior.

This pattern gives you most of the benefits of inheritance:

  • one shared contract
  • less duplicated prompt logic
  • clearer responsibility boundaries
  • easier maintenance when the flow grows

Instruction precedence

The current workspace follows this order:

  1. .github/copilot-instructions.md
  2. shared skills referenced by an agent
  3. agent-local instructions in the .agent.md file
  4. runtime task envelope from the user or parent agent

This means a child agent should specialize the shared rules, not contradict them.

Inheritance map for this workspace

Global base
  .github/copilot-instructions.md

Shared contract
  .github/skills/shared-agent-contract/SKILL.md

Role-specific behavior
  .github/skills/agents-orchestration/SKILL.md
  .github/skills/worker/SKILL.md

Agent specializations
  .github/agents/main-orchestrator.agent.md
  .github/agents/worker1.agent.md
  .github/agents/worker2.agent.md
  .github/agents/worker3.agent.md

Shared contract

The shared agent contract is the most important inheritance layer because it standardizes:

  • the task envelope
  • the expected input fields
  • the output schema
  • failure handling

In this workspace, the common task envelope contains:

  • task_id
  • objective
  • mode
  • input_artifact
  • constraints
  • expected_output
  • parent_agent

The common return contract contains:

  • status
  • agent
  • summary
  • result
  • notes

This is what allows multiple agents to cooperate without inventing a new mini-protocol every time.

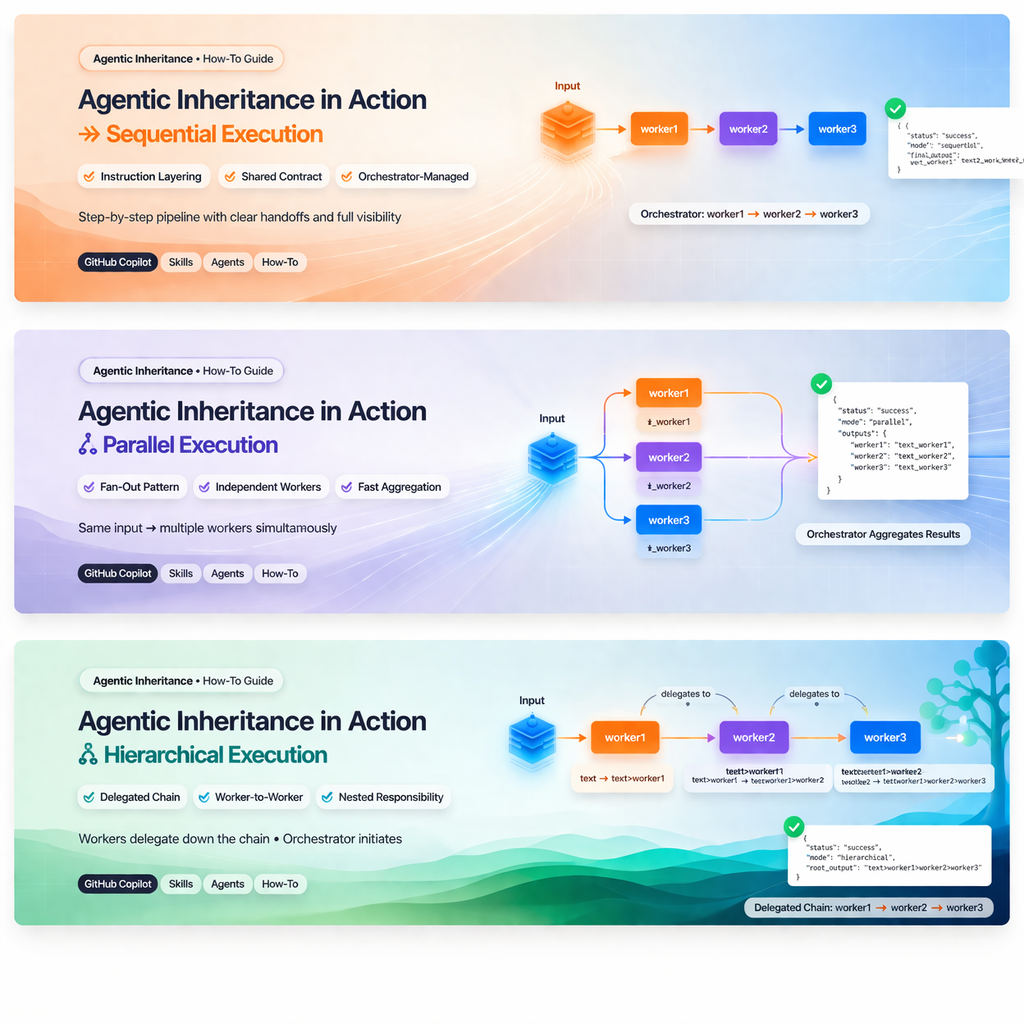

Execution Modes

1. Sequential mode

What it means

Sequential mode is a step-by-step pipeline controlled by the orchestrator.

The orchestrator remains responsible for each handoff:

main-orchestrator -> worker1 -> main-orchestrator -> worker2 -> main-orchestrator -> worker3

When to use it

  • when each step depends on the previous result
  • when you want centralized control and visibility
  • when failure should stop the flow immediately

Benefits

  • easiest mode to reason about
  • strongest orchestrator control
  • straightforward logging and retries

Tradeoffs

  • slower than parallel mode
  • the orchestrator sits on the critical path between every step

Example

status: success
agent: main-orchestrator
summary: Ran workers 1→2→3 sequentially on the input text and returned the final transformed output.
result:
  mode: sequential
  steps:
    - worker: worker1
      input: "text to transform"
      output: "text to transform_worker1"
    - worker: worker2
      input: "text to transform_worker1"
      output: "text to transform_worker1_worker2"
    - worker: worker3
      input: "text to transform_worker1_worker2"
      output: "text to transform_worker1_worker2_worker3"
  final_output: "text to transform_worker1_worker2_worker3"
notes: Each worker appended its marker in turn, with the orchestrator coordinating the handoffs and preserving the step history.

How to implement it

  1. The orchestrator receives the original input.
  2. The orchestrator sends the input to worker1.
  3. worker1 returns a structured result.
  4. The orchestrator takes worker1.result and sends it to worker2.
  5. The orchestrator takes worker2.result and sends it to worker3.
  6. The orchestrator returns the final worker output plus step history.

2. Parallel mode

What it means

Parallel mode is a fan-out pattern where the orchestrator sends the same input to multiple workers at the same time.

main-orchestrator -> worker1
main-orchestrator -> worker2
main-orchestrator -> worker3

The orchestrator then aggregates the results.

When to use it

  • when workers are independent
  • when you want comparison outputs
  • when speed matters more than step-to-step dependency

Benefits

  • faster execution when tasks are independent
  • good for experimentation and comparison
  • simple aggregation model

Tradeoffs

  • workers cannot build on one another
  • results may need post-processing before they are directly comparable

Example

status: success
agent: main-orchestrator
summary: Ran three workers in parallel on the same input text and collected their outputs.
result:
  mode: parallel
  outputs:
    worker1: "text Parallel_worker1"
    worker2: "text Parallel_worker2"
    worker3: "text Parallel_worker3"
notes: Each worker independently appended its own marker to the shared input, with the orchestrator coordinating the aggregation of results.

How to implement it

  1. The orchestrator receives the original input.
  2. The orchestrator sends the same input_artifact to all workers.
  3. Each worker returns its own structured result independently.
  4. The orchestrator combines the outputs into a worker-keyed result object.

3. Hierarchical mode

What it means

Hierarchical mode is a delegated chain where the orchestrator starts the flow, but workers pass control down the line:

main-orchestrator -> worker1 -> worker2 -> worker3

This is different from sequential mode because the orchestrator is not the handoff point between each stage.

When to use it

  • when a subflow should be owned by the workers themselves
  • when you want nested responsibility
  • when later workers are conceptually children of earlier workers

Benefits

  • supports tree-like or nested delegation patterns
  • can reduce orchestration chatter
  • models parent-child processing chains naturally

Tradeoffs

  • harder to trace than orchestrator-managed sequential mode
  • worker agents stop being pure leaf nodes
  • failure handling and observability become more complex

Important design note

In this workspace, hierarchical mode is implemented by allowing workers to delegate to other workers.

That means:

  • worker1 becomes a parent of worker2
  • worker2 becomes a parent of worker3
  • only worker3 stays a true leaf in the hierarchical path

This is the main conceptual difference from the default worker skill, which describes workers as leaf agents unless explicitly configured otherwise.

Example

status: success
agent: main-orchestrator
summary: Ran workers hierarchically (worker1 → worker2 → worker3) on the input textTree and collected each stage’s output.
result:
  mode: hierarchical
  hierarchy:
    worker1:
      input: "textTree"
      output: "textTree>worker1"
    worker2:
      parent: "worker1"
      input: "textTree>worker1"
      output: "textTree>worker1>worker2"
    worker3:
      parent: "worker2"
      input: "textTree>worker1>worker2"
      output: "textTree>worker1>worker2>worker3"
  root_output: "textTree>worker1>worker2>worker3"
notes: Hierarchical mode mirrors a delegated chain (each worker builds on its parent’s output); the orchestrator initiates the flow but does not manage each handoff, allowing workers to take ownership of the subflow and pass results directly to their child workers.

How to implement it

  1. The orchestrator starts the flow by calling worker1.
  2. worker1 transforms the input and forwards the result to worker2.
  3. worker2 transforms the input and forwards the result to worker3.
  4. worker3 returns the terminal output.
  5. The flow returns the final result together with stage lineage.

Sequential vs Parallel vs Hierarchical

Approach Control point Dependency model Best for
Sequential Orchestrator between every step Strong step dependency Pipelines with centralized control
Parallel Orchestrator fans out and aggregates Independent workers Speed, comparison, multi-variant outputs
Hierarchical Workers delegate down the chain Nested parent-child dependency Tree-like subflows and delegated ownership

How To Design a Similar Agentic Flow

Step 1. Define the base contract once

Put shared rules in .github/copilot-instructions.md and keep them generic:

  • task envelope
  • result schema
  • failure schema
  • delegation constraints

Step 2. Move reusable behavior into skills

Use one shared contract skill and then create role-specific skills such as:

  • orchestration
  • worker execution
  • validation
  • domain-specific transformation

This is how you avoid copying the same prompt logic into every agent.

Step 3. Keep agent files thin

Each agent file should answer only these questions:

  • what is this agent responsible for
  • which skills does it use
  • which child agents may it call
  • what makes it different from sibling agents

If a rule applies to many agents, it should usually move upward into a shared skill or global instruction.

Step 4. Choose the right execution mode

Use:

  • sequential for orchestrator-controlled pipelines
  • parallel for independent branches
  • hierarchical for delegated subtrees or nested chains

Do not choose hierarchical mode only because it looks more advanced. It should be used when worker-owned delegation is actually a better model.

Step 5. Keep outputs traceable

Always return enough structure for the parent to understand:

  • who ran
  • what input they received
  • what output they produced
  • whether the step succeeded

The sample outputs in this workspace are a good pattern because they preserve both the final result and the path taken to get there.

  1. Decide whether workers should truly be leaf agents by default, or whether hierarchical delegation is a first-class requirement.
  2. If hierarchical mode is first-class, update the worker skill language to describe internal-node workers more explicitly.
  3. Keep the shared contract stable so all execution modes return compatible result structures.
  4. Consider semantic worker names later, such as normalize, transform, and finalize, once the pattern is stable.

Final Takeaway

The cleanest way to build agentic inheritance in GitHub Copilot is to treat inheritance as layered prompt architecture:

  • base instructions for universal policy
  • shared skills for reusable behavior
  • thin agents for specialization
  • explicit execution modes for flow control

These three execution modes are all valuable tools in your design toolbox:

  • sequential is the clearest orchestrator-led pipeline
  • parallel is the clearest fan-out model
  • hierarchical is the most powerful but also the most structurally opinionated

If you are introducing agentic flow to a new team, start with sequential, add parallel when tasks are independent, and introduce hierarchical only when you truly need worker-owned delegation chains.
